Shrinking every skateboarder’s concern to a single problem, nothing caps off the skateboard setup as perfectly as the correct truck size. Alongside Independence Skateboard Manufacturing Company, one of North America’s oldest skateboard companies, Venture Trucks has earned skaters’ trust for decades because of their excellent craftsmanship and performance. The following discussion analyzes Venture Trucks size chart to assist skaters ranging from beginner to pro in picking the most suitable tackle for their deck.
Table of Contents
- Introduction to Venture Trucks
- Understanding Skateboard Truck Sizing
- Venture Trucks Size Chart (Detailed Table)
- How to Choose the Right Venture Truck
- Deck Width vs Truck Width (Graph)
- Hanger Width vs Axle Width Explained
- Venture Truck Series Overview (Low, Mid, High)
- Beginner Tips for Choosing Venture Trucks
- Common Mistakes to Avoid
- FAQs
- Final Thoughts

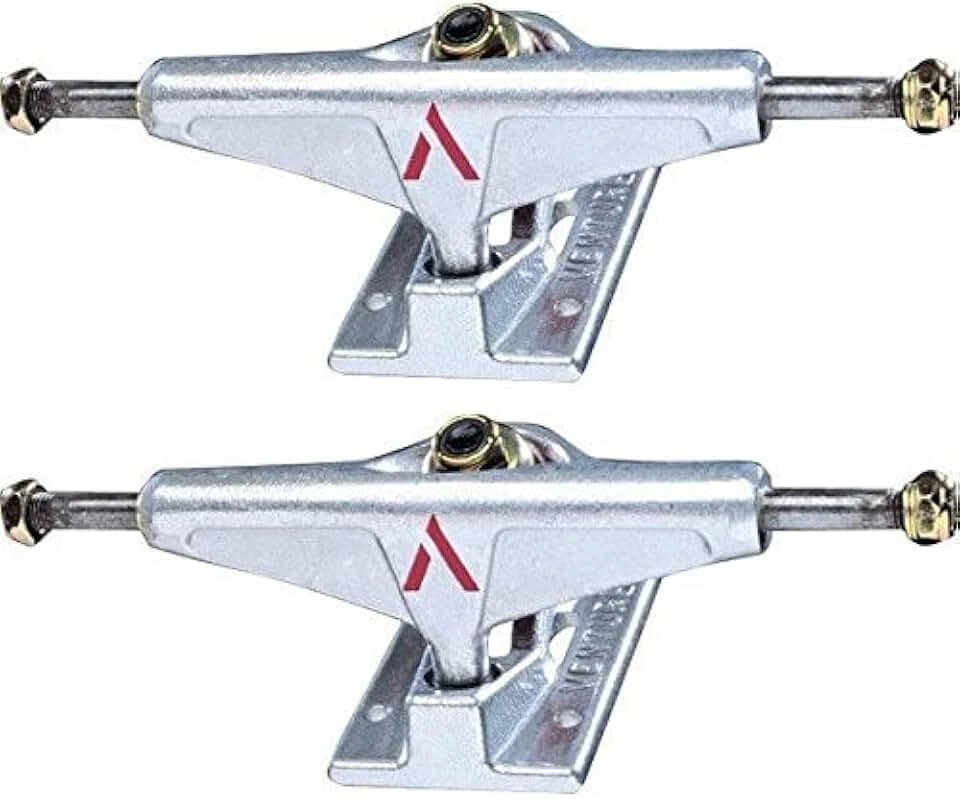

Introduction to Venture Trucks
As one of the top brands in skateboarding, Venture Trucks stands out for its reliable skater truck turns, light form, and superb clearance for grinds. Trick on the streets or ride the ramps; Venture skater trucks meet all performance-to-price ratio requirements of any hardcore Venture skater.
Understanding Skateboard Truck Sizing
Before diving into the size chart, it’s essential to understand how trucks are measured:
- Axle Width: Measures the total width from one end of the axle to the other.
- Hanger Width: The central part of the truck — slightly smaller than the axle.
- Deck Width Compatibility: Determines how well the trucks will align with your skateboard deck.
The goal is to match the axle width as closely as possible to your deck width for optimal performance and balance.
Venture Trucks Size Chart
| Venture Truck Model | Axle Width (inches) | Deck Width Compatibility (inches) | Hanger Width (mm) |
| Venture 5.0 | 7.63″ | 7.5″ – 7.75″ | 127mm |
| Venture 5.2 | 8.0″ | 7.75″ – 8.1″ | 133mm |
| Venture 5.6 | 8.25″ | 8.1″ – 8.3″ | 139mm |
| Venture 5.8 | 8.5″ | 8.3″ – 8.6″ | 144mm |
| Venture 6.1 | 8.75″ | 8.6″ – 9.0″ | 149mm |
| Venture 6.3 | 9.0″ | 9.0″ – 9.25″ | 152mm |
How to Choose the Right Venture Truck
To find the best fit:
- Measure your deck width (in inches)
- Refer to the chart above to find the compatible Venture truck size
- Match the axle width as closely to your deck as possible
Pro Tip: If a truck is wider, it is more stable, which is best for cruising or vert. A narrow truck is better for flips and technical tricks.

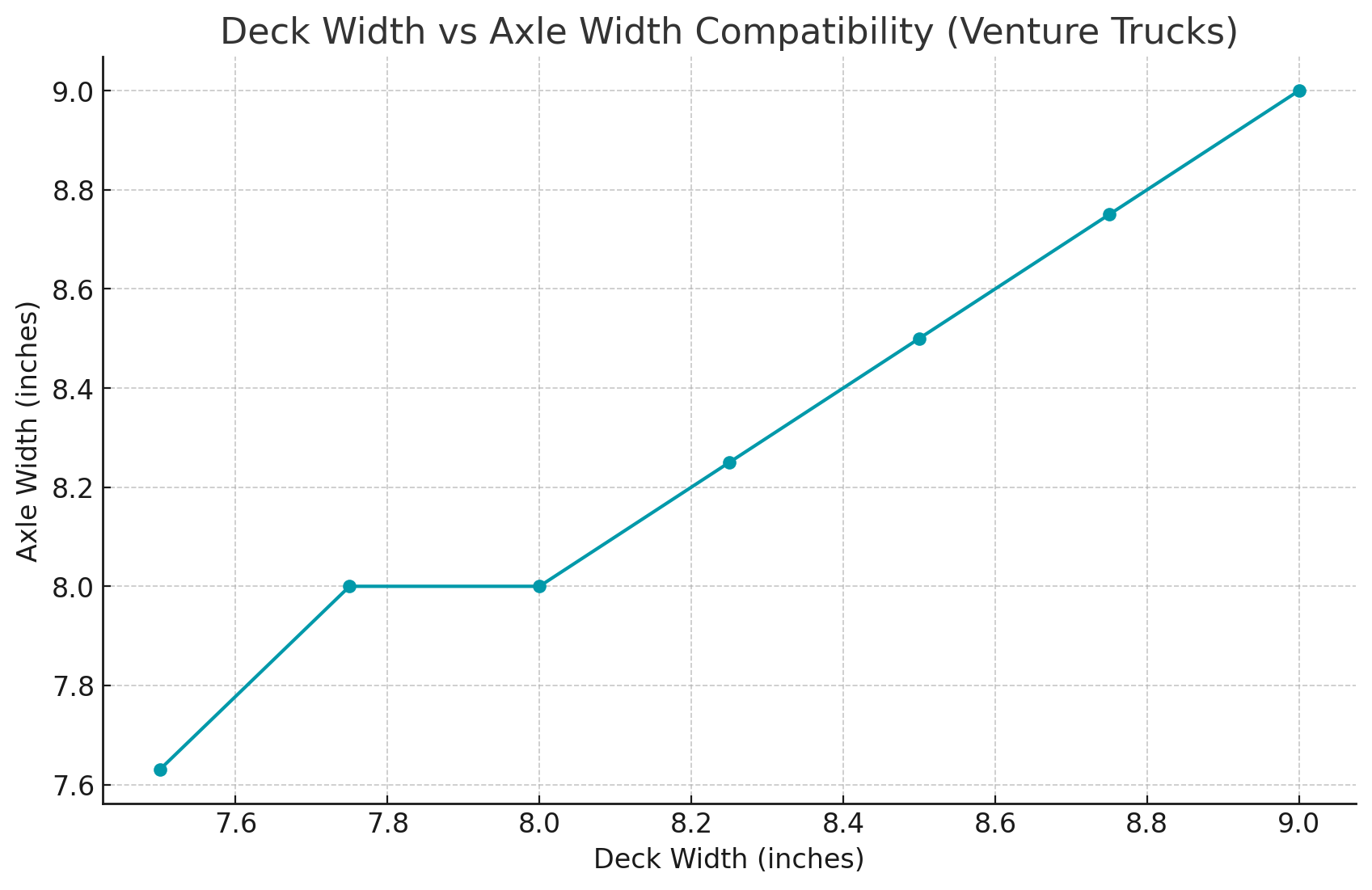

Graph: Deck Width vs Axle Width Compatibility
Let’s visualize how Venture truck axle widths align with deck widths:
Hanger Width vs Axle Width Explained
Understanding these terms is of key importance:
- Hanger Width: Inner width that determines the degree of turn you will get.
- Axle Width: The overall width of the hangers gives an approximate value of how centred the deck will be.
- A 133mm hanger is approximately equal to 8.0” axle width.
Ideal Fit: The truck axle should not extend past your deck or be too narrow, which could affect stability and turn.

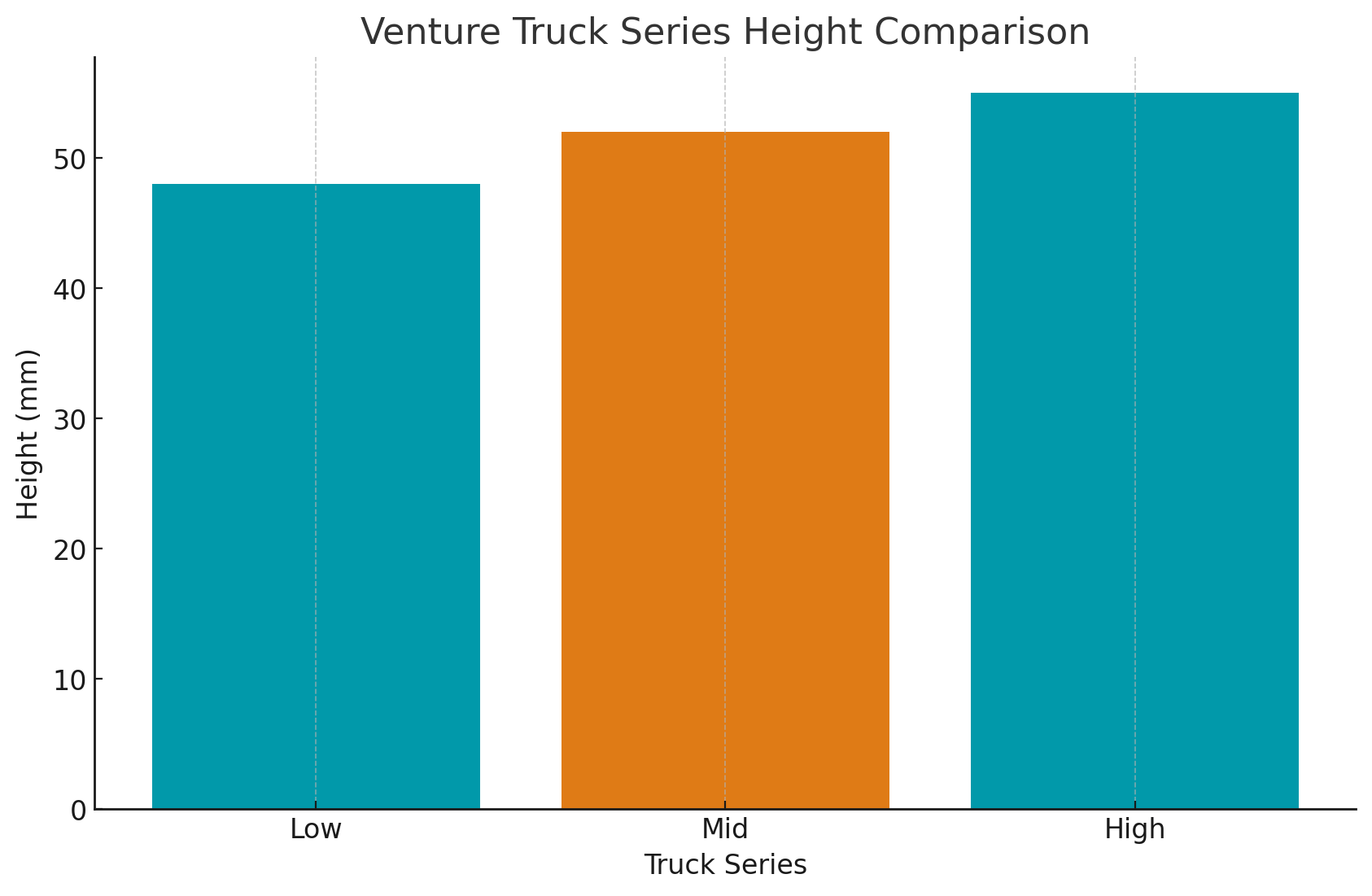

Venture Truck Series Overview
Venture offers multiple height profiles to suit different skating styles:
| Truck Type | Height | Best For |
| Venture Low | ~48mm | Technical street skating |
| Venture Mid | ~52mm | All-around use |
| Venture High | ~55mm | Transition, vert skating |
- Low Trucks offer better pop control for flip tricks
- High Trucks are better for larger wheels and smoother rides
Beginner Tips for Selecting Venture Trucks
- Stick with Venture 5.2 or 5.6 if you ride decks between 7.75″ and 8.25″
- Choose height to be more versatile
- Combine with 52mm – 54mm wheels for smooth turns and grinds
- Always check if the baseplate and kingpin fit your board’s hardware and setup
Common Mistakes to Avoid
- Mismatched truck and deck width: Causes instability or poor control
- Using high trucks with small wheels Will restrict pop and control
- Overtightened bushings: Makes turning difficult
FAQs – Venture Skateboard Truck Size
- What size is a 5.6 Venture truck, and what deck does it fit?
The Venture 5.6 trucks fit best with boards measuring from 8.1″ to 8.3″ inclusive, as they have an axle width of 8.25 inches. Remember to cross check with Venture Trucks sizing chart for proper matching.
- What is the best Venture truck for an 8.0 deck?
The 8″ deck performs best with the Venture 5.2 trucks which have an axle width of 8.0 inches. This alignment allows for proper axle width vs deck width proportion, enabling even performance.
- Does an 8.5 deck go with 5.5 trucks?
5.5 trucks are generally too narrow for a larger 8.5” deck however they do fit on an 8.5” deck. If control and stability are your priority, Venture 5.8 or 6.1 are better suited for wider decks.
- How does Venture truck sizing compare to Independent Trucks?
Venture and independent trucks have different measurements, width relations and geometry. For further clarity, refer to both the Venture Trucks size chart and the Independent Trucks size chart to analyze in one place.
- Which height options are offered for Venture skateboard trucks?
Venture Trucks are available in Low (~48mm), Mid (~52mm), and High (~55mm) variants. Each of these has its specific advantages, which we cover in the differences in skate truck height differences section.
- How does Venture 5.2 Low differ from standard 5.2?
Venture 5.2 Low offers a more controlled, better ride suited for flip tricks, while the standard 5.2 (Mid) is balanced, providing an all-around versatile skateboarding experience.
- Do Venture 6.1 Trucks fit larger boards?
Yes, Venture 6.1 Trucks have 8.75-inch axles, which suit deck widths from 8.6” up to 9.0”. These are good for skaters who prefer a wider setup.
- What do you need to know about skateboard truck sizing if you’re a beginner?
Beginners should always refer to a skateboard hardware guide and ensure the axle width corresponds with the deck width. A Venture 5.2 or 5.6 mid-height truck is ideal.
- Is there a size chart for Venture 5.6?
Yes. Venture 5.6 size chart indicates that it fits decks of 8.1″ to 8.3″. The hanger’s approximately 139mm, providing good performance both in street and park skating.
- In what ways do skateboarding low and high trucks impact performance?
Performance improves with low trucks for flip tricks and technical skating. High trucks offer more clearance for the wheels because of larger wheels and are better suited for cruising and transition – an important aspect in venture truck comparison articles.

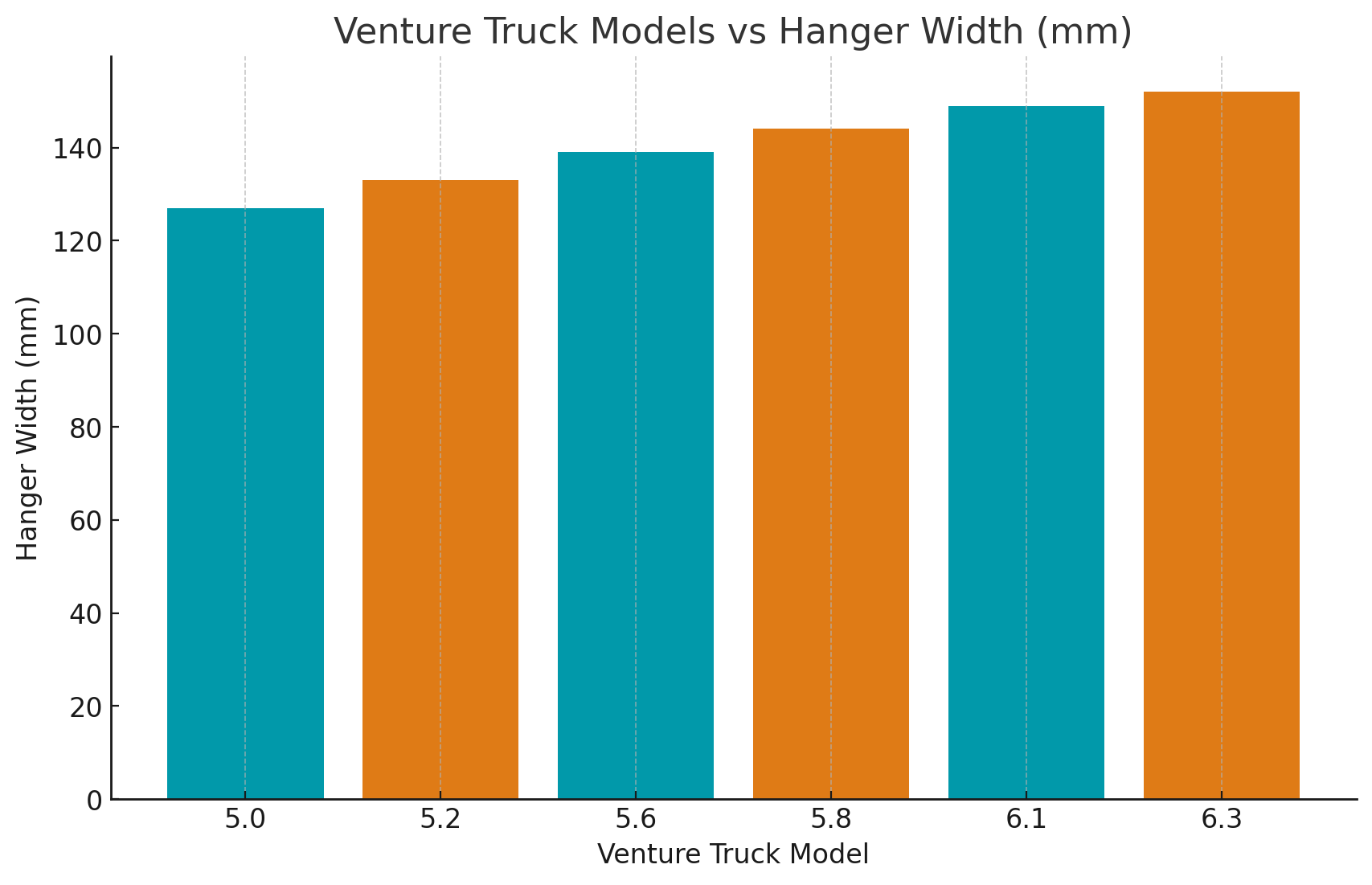

Additional Graph: Venture Truck Models vs Hanger Width

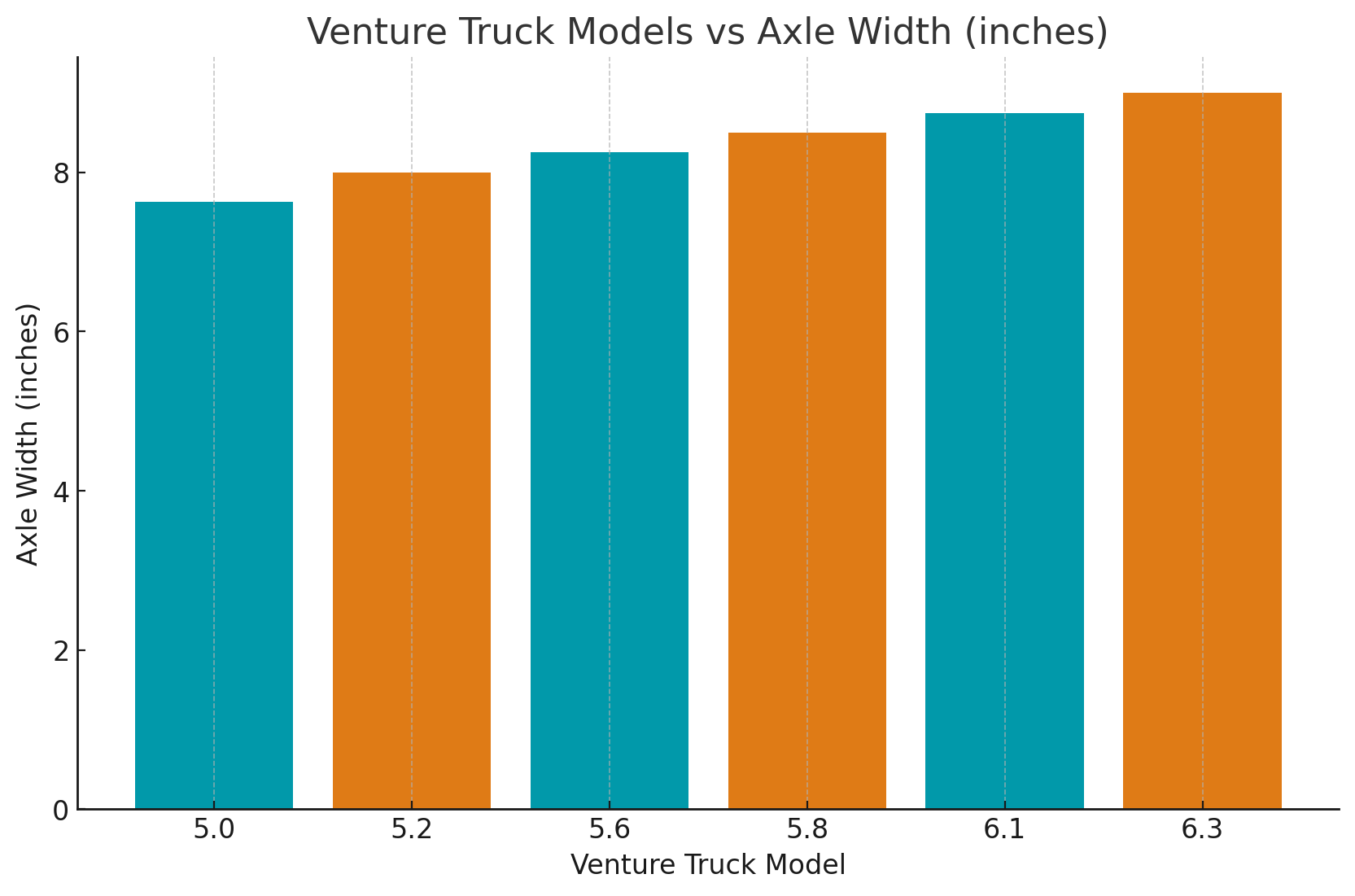

Venture Truck Models vs Axle Width
Final Thoughts
When it comes to getting the most out of your skateboard setup, selecting the appropriate truck is critical. With Venture, all of this is taken care of for you; it is not just a well-known brand but also an assurance of enjoyable rides, accurate carving, and dependable grinds. With this Venture Trucks Size Chart, Venture ensures that you set your gear accurately so that you can hit the streets and parks with unparalleled confidence.
